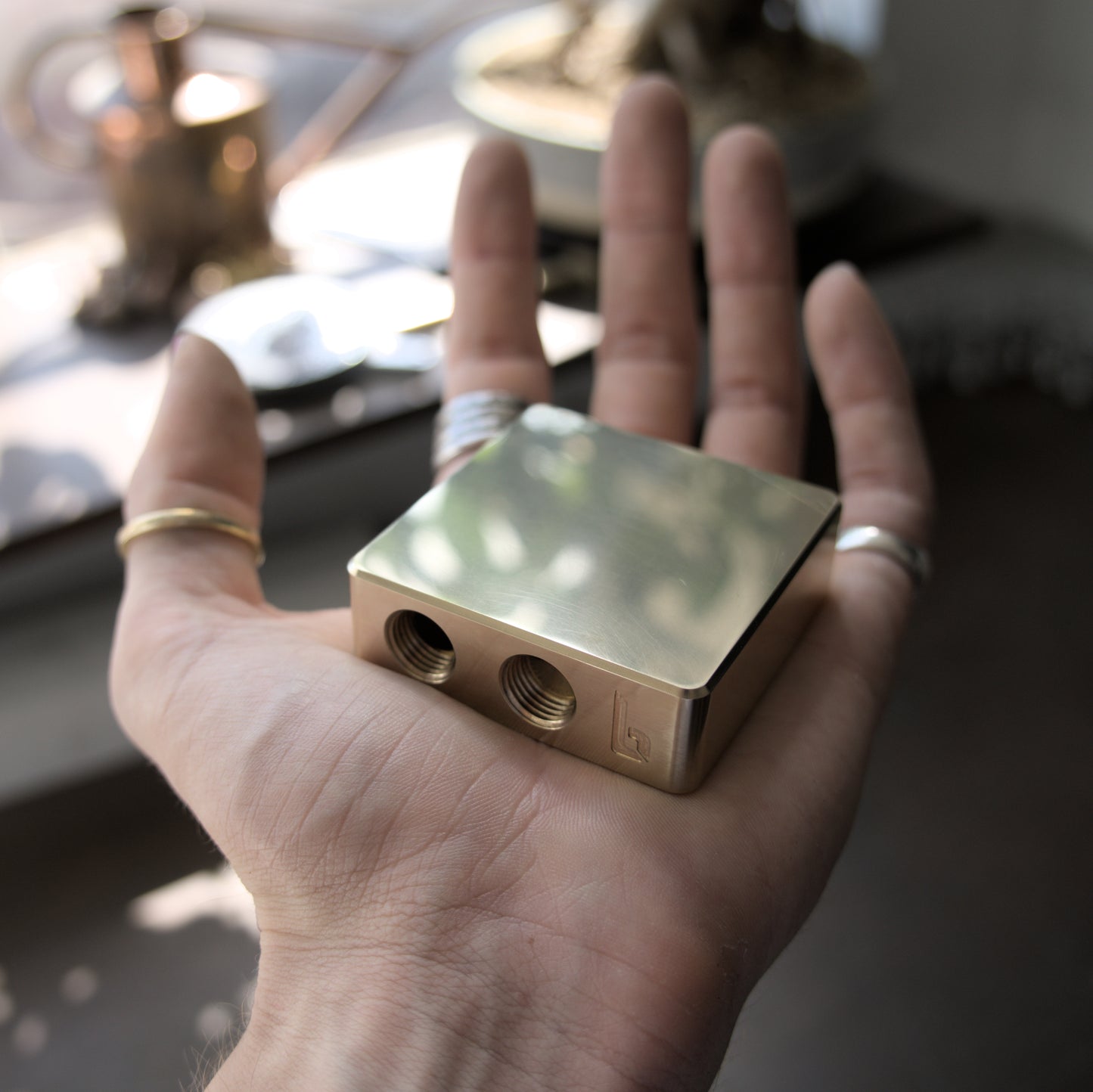

The smallest DDC pump top ever made with fittings on the same side.
The ultimate solution for small form factor builds. Easy same-side plumbing, combined with an unparalleled form factor. Fit your DDC pump in places you never could before.

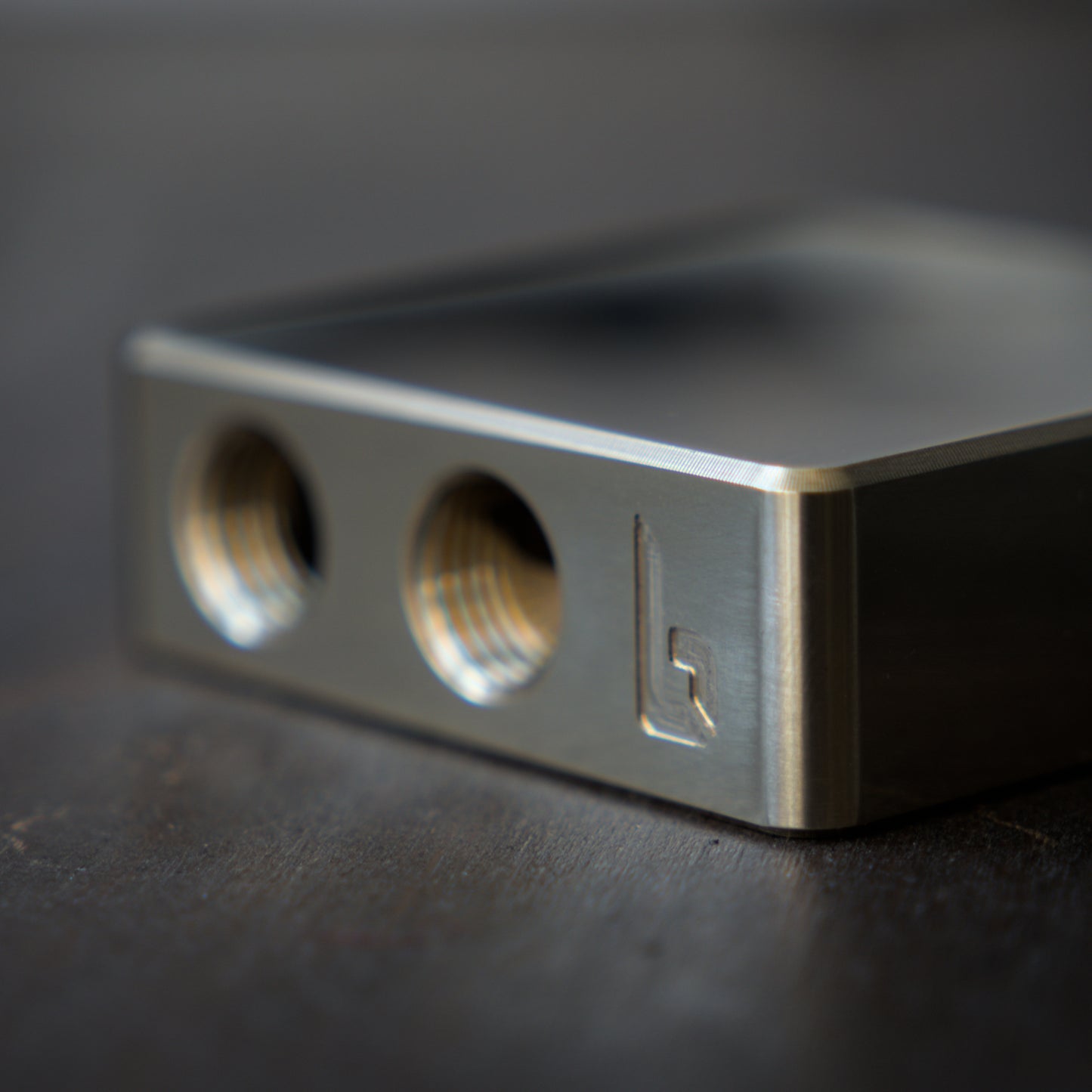

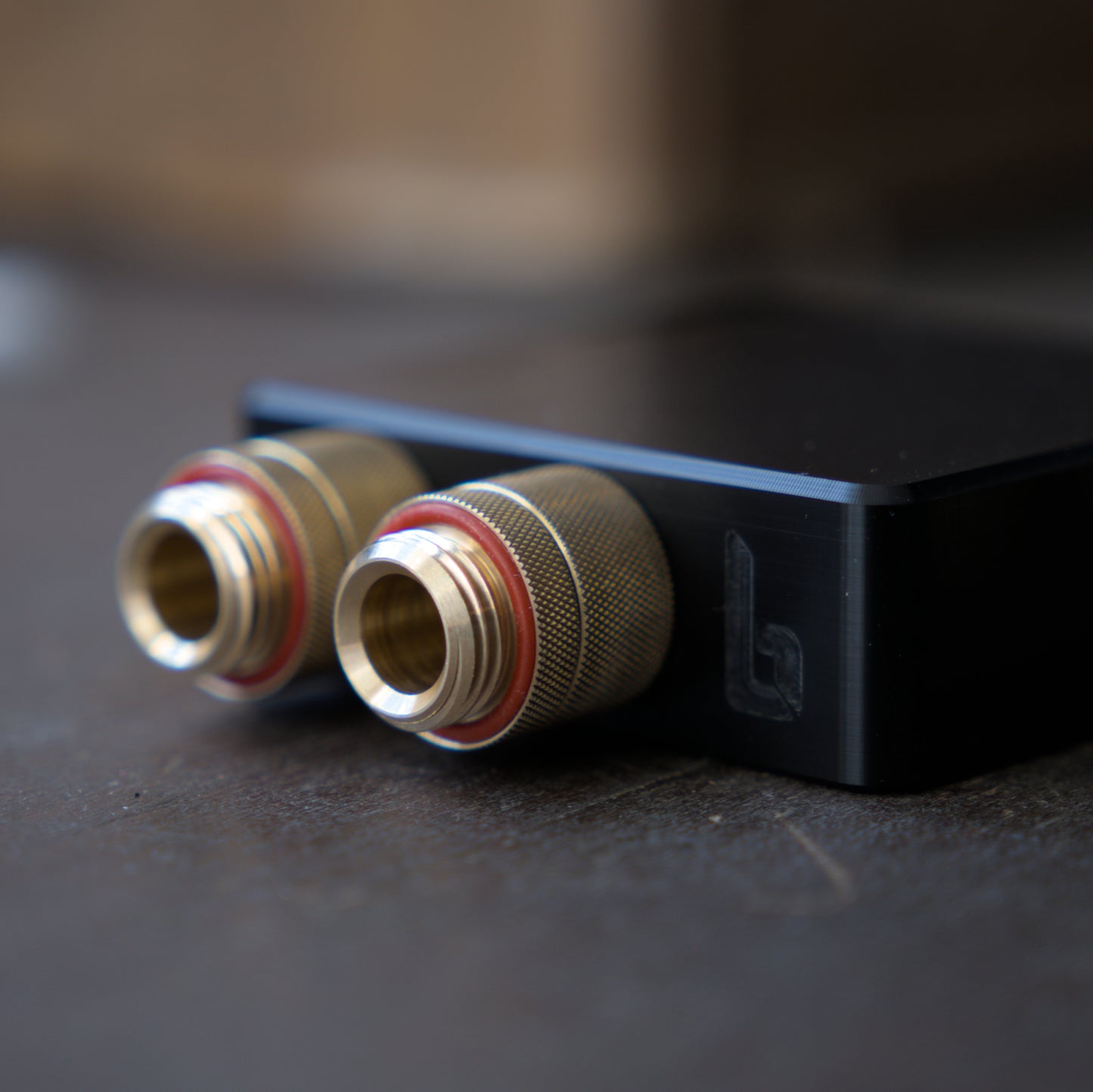

Other small DDC pump tops may have the fittings off-centre due to machining limitations, but we use complex compound angles only made possible with 5-axis CNC machining to achieve ports perfectly spaced across its 20mm height. This gives excellent aesthetics, due to the fittings lining up neatly, and ensures a perfect seal with any fittings up to 20mm in diameter. Larger diameter fittings will still fit, but will overhang the edges.

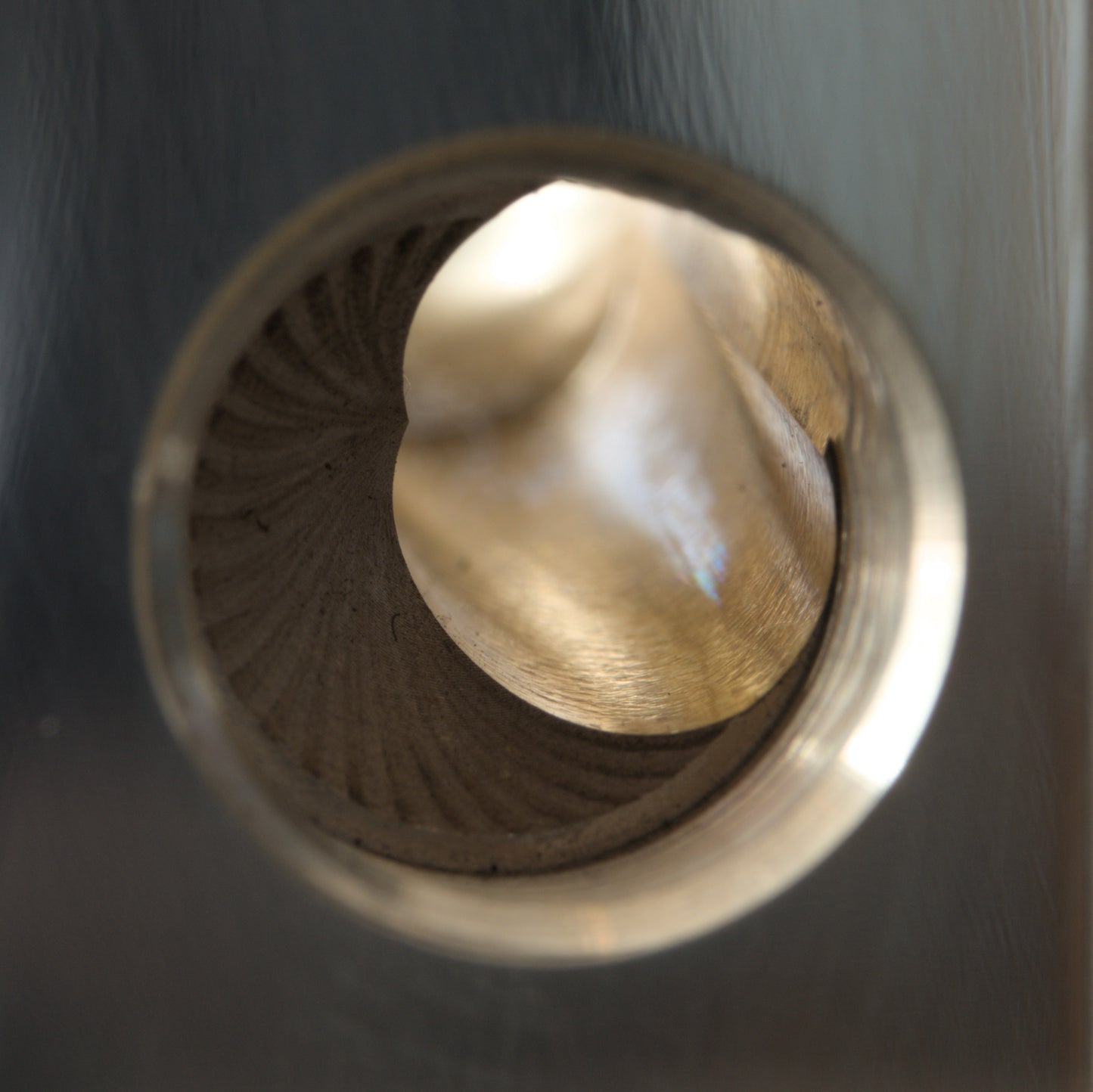

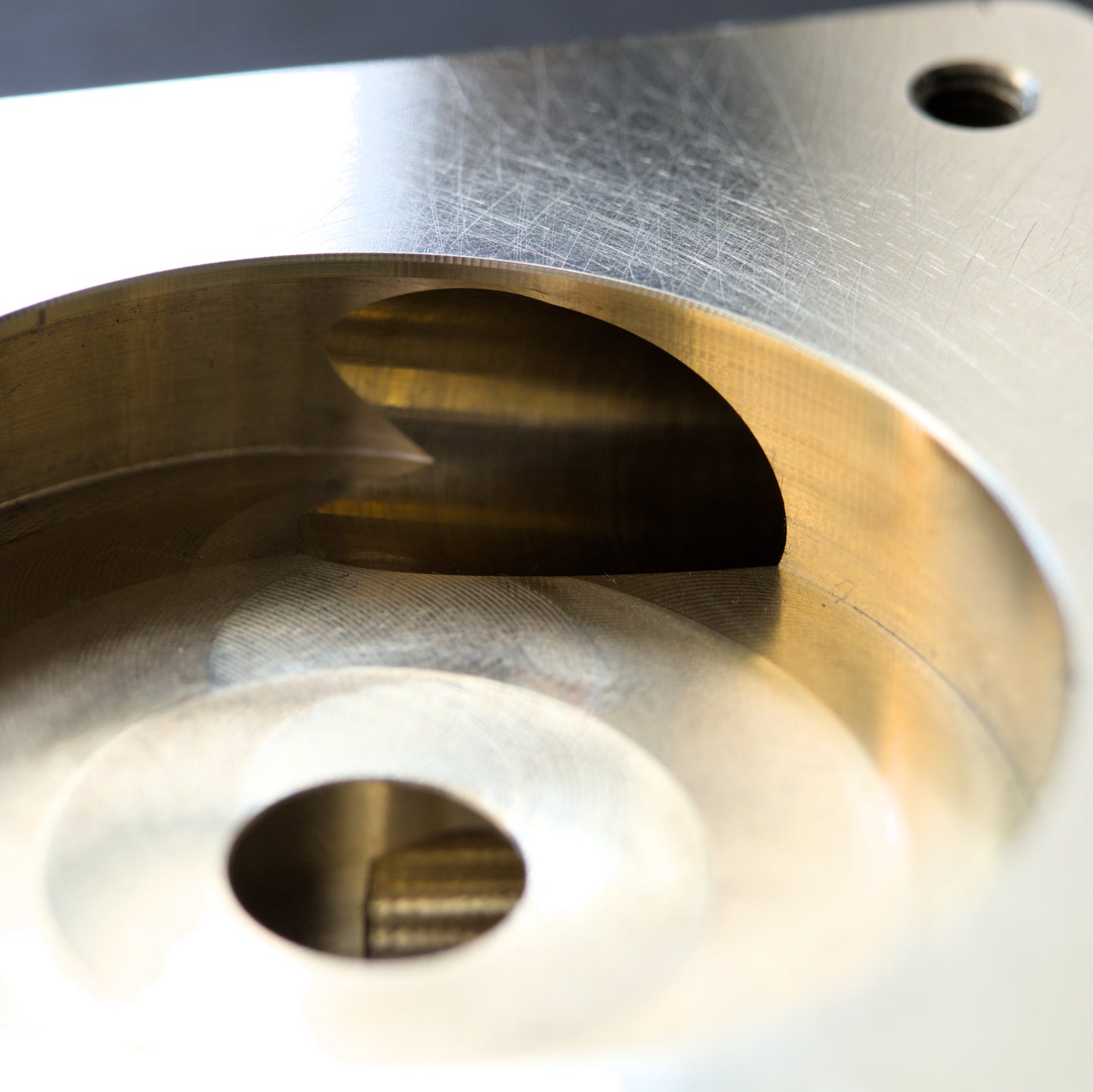

We've drilled 2 overlapping holes inside the inlet port, keeping the smallest form factor possible, while maintaining the equivalent cross-sectional-area of a 9mm hole to match the outlet. We've spared no expense to keep the flow and pump pressure as strong as possible within the available size.

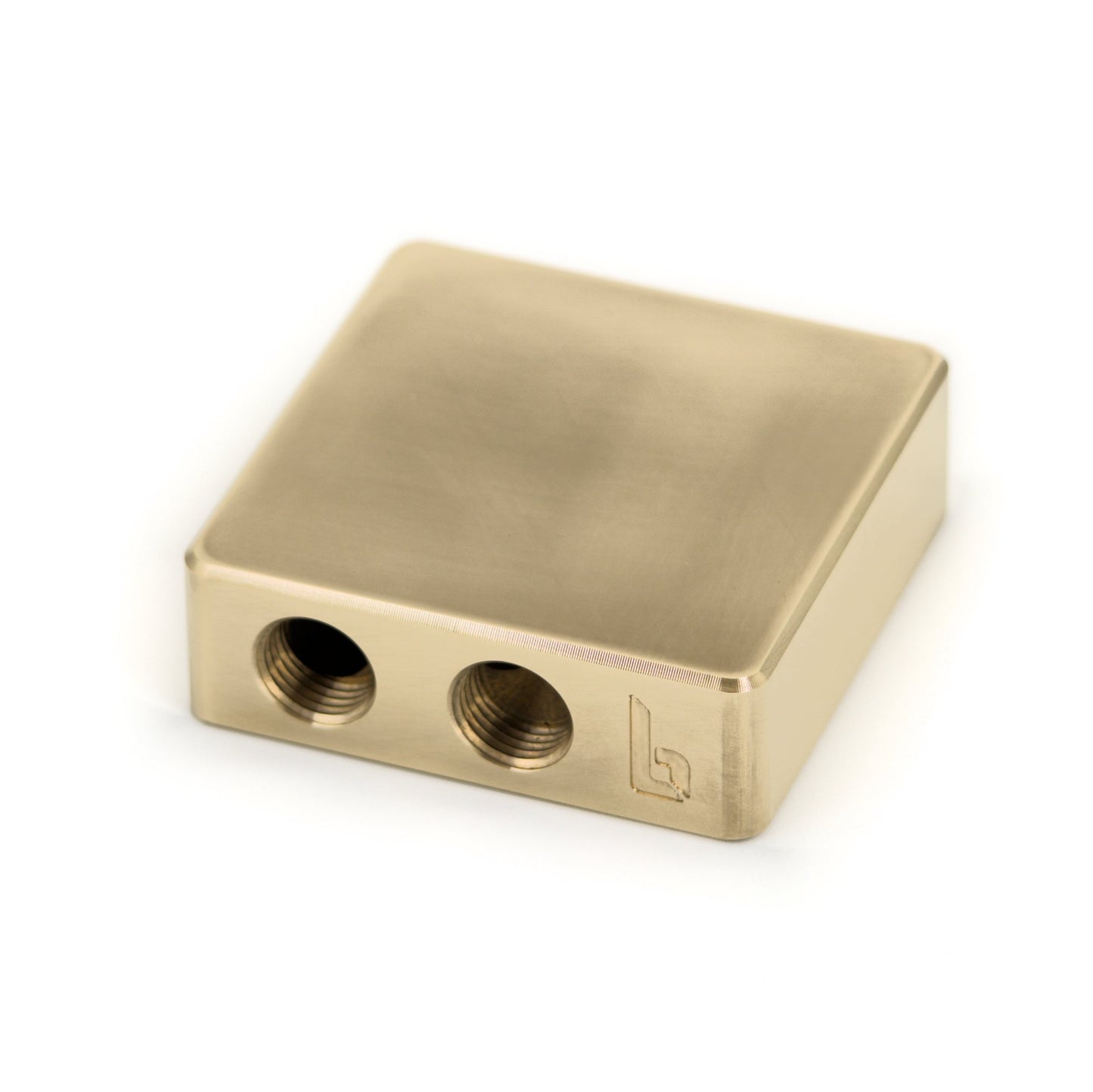

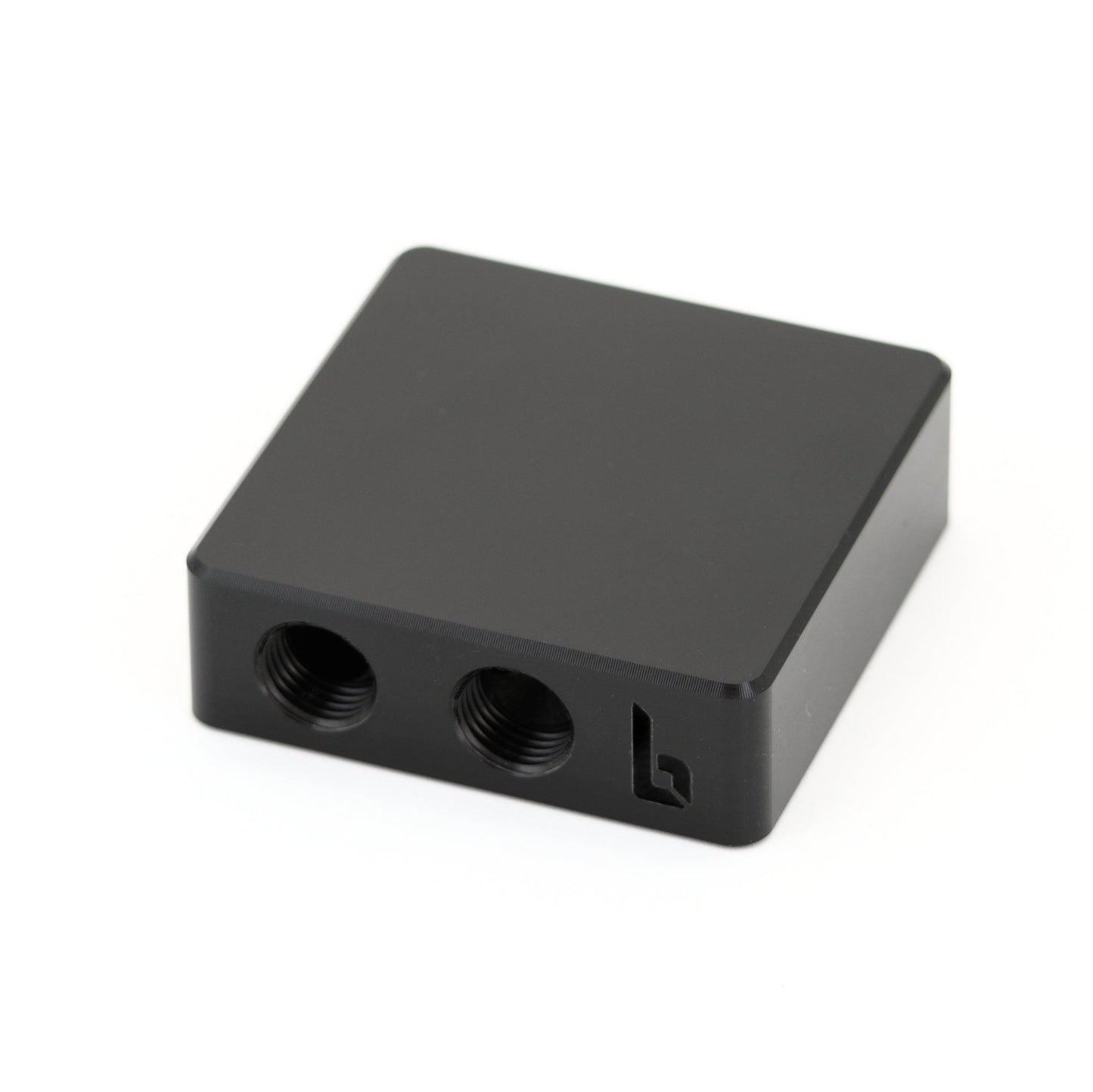

CNC-machined in the UK from a single solid Brass or Acetal billet.
This pump top is not coated or lacquered, so the brass will age naturally over time. This will not affect the functionality in any way, and can be easily re-polished by the user if a shiny aesthetic is preferred long-term.
We can customise this pump top on request, with custom engraving, colour-filled logos, powder-coated finishes (black, white, any RAL colour), or electroplating (nickel, chrome, copper, gold, silver). Please drop us a message for any custom enquiries - email info@billetlabs.com or DM on Instagram @billet_labs.
Thread: G1/4" female (x2)

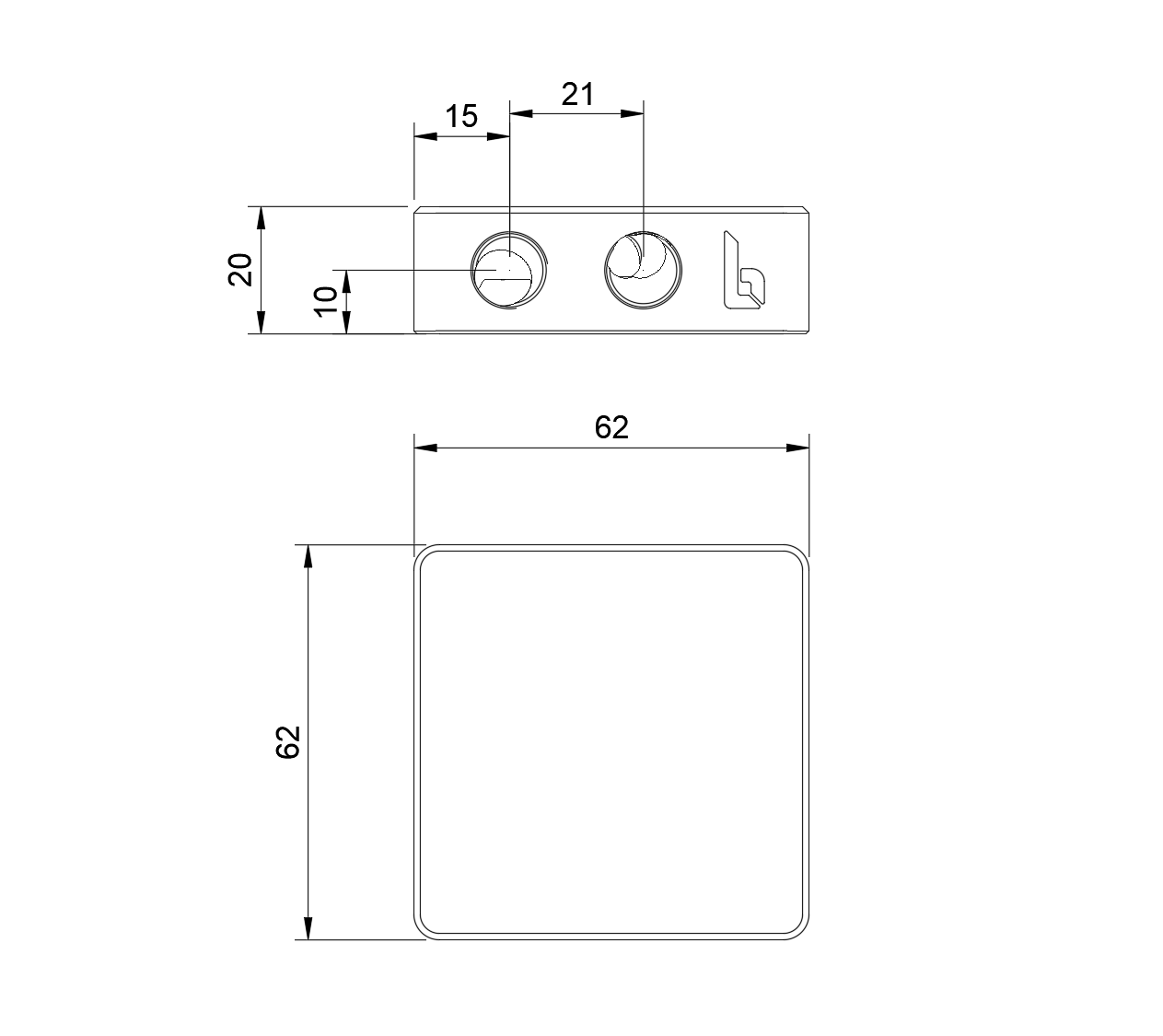

Dimensions: 62mm x 62mm x 20mm
